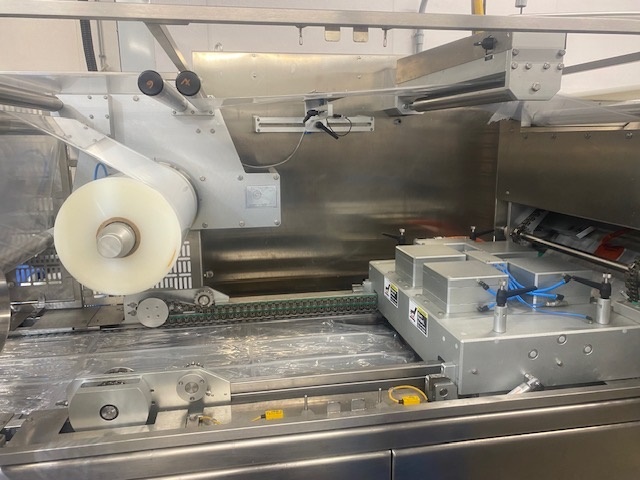

PACK 3000 SKIN PACK VACUUM PACK MACHINE

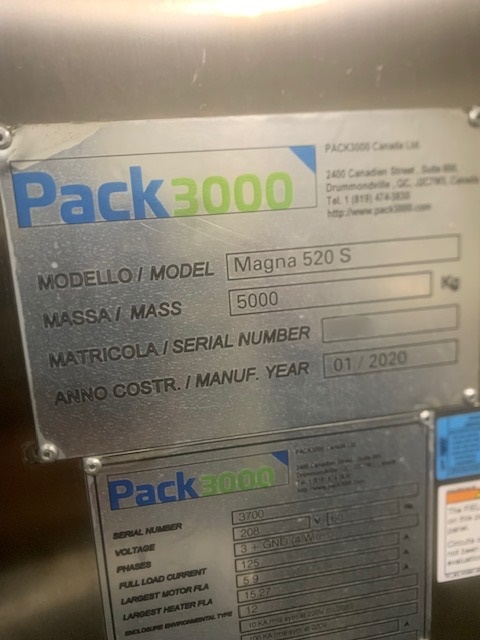

- Model: MAGNA 520-S
VERY GOOD CONDITION
ID # 1181
* Very Good Condition
* Year of Manufacture: 2020
* Web Width: Bottom 523 – Top 505
* Advance Length: Film is 500 mm x 523 mm Wide

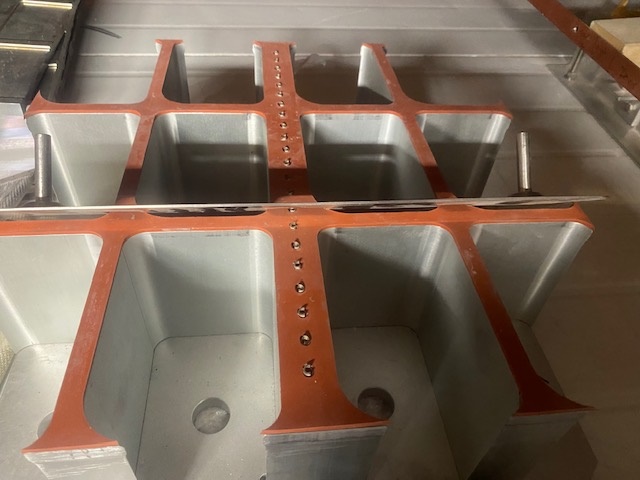

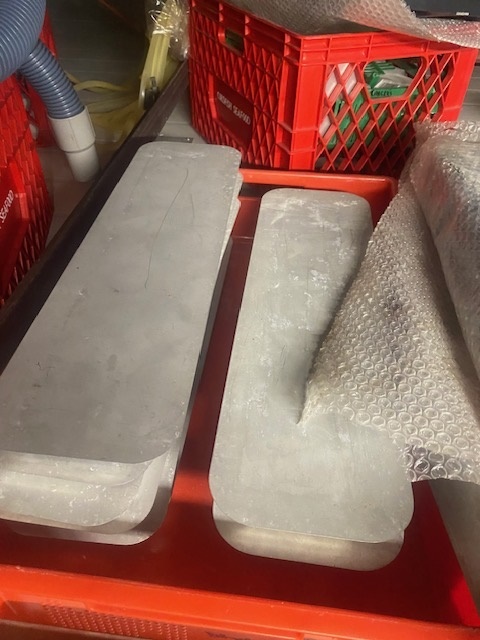

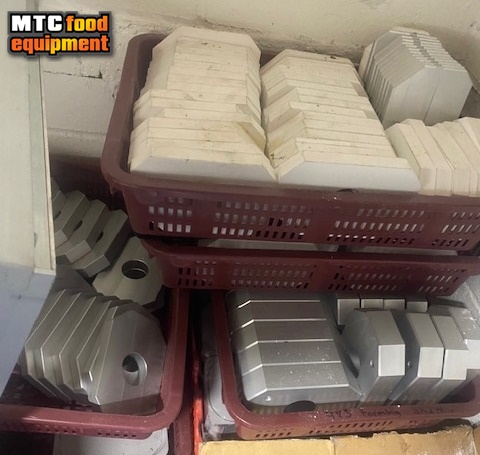

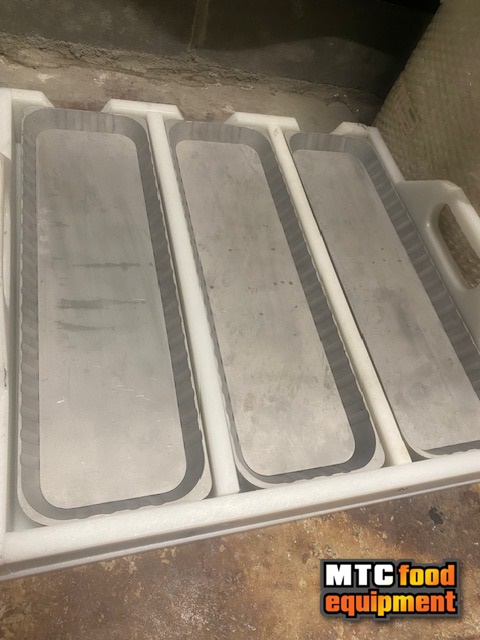

* Die Sizes: Email MTC for Drawings
* Cycle Count: Up to 12 Cycle PM Vacuum or 6 Cycles Skin Pack
* Frame Length: 31 Feet Long

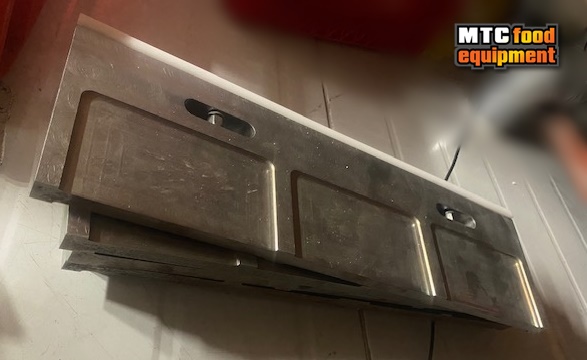

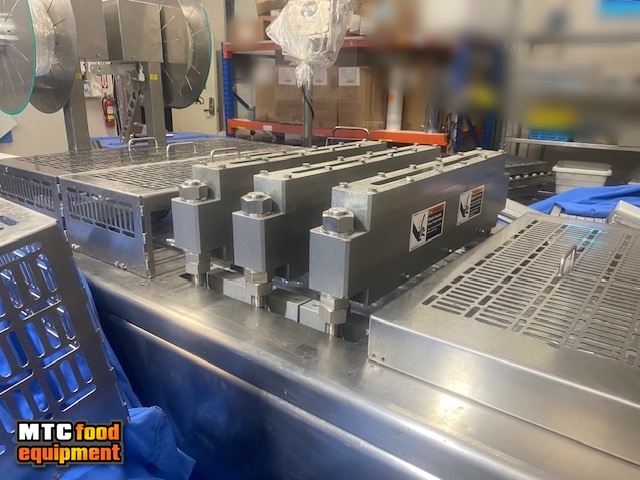

* Cutting: Scissor Blades and Punch Cross Cut with Lifting
* Running Hours: 575 Hours of Production Time
* Advance: Pre Heat, Top Chain, Can do Rigid Film
* Stainless Frame, Brushless Motor

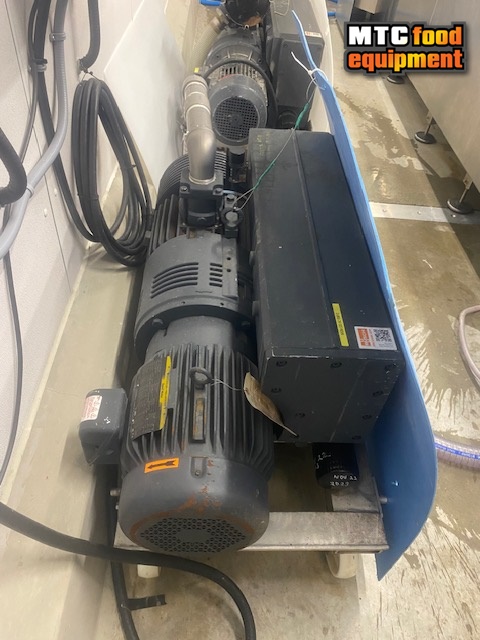

* Dual Busch Vacuum Pump for Sealing
* Top Lifting on Sealing and Cutting

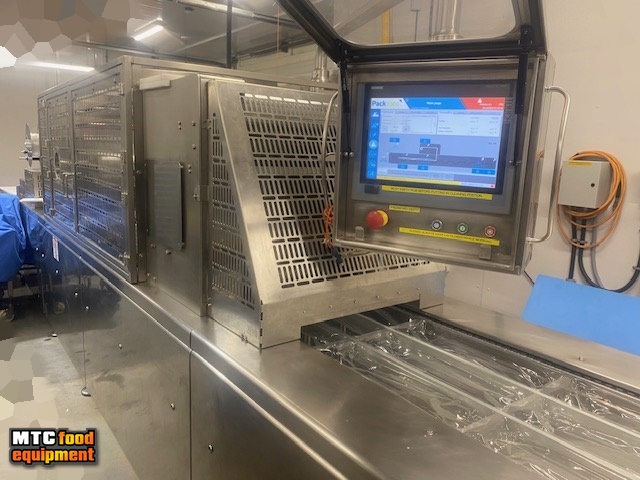

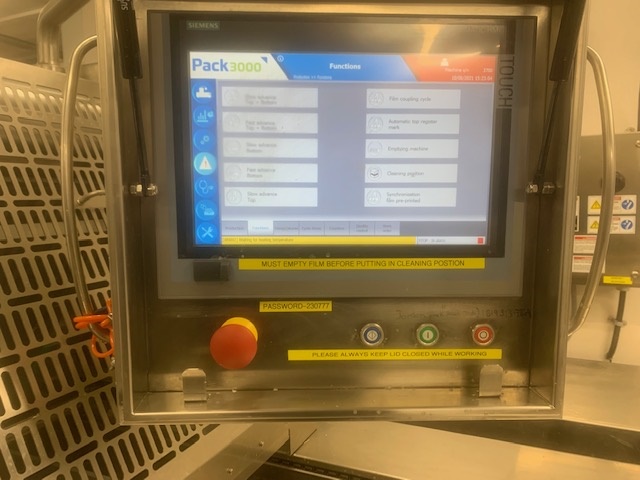

* 15” Color Touch Screen on Swing Arm

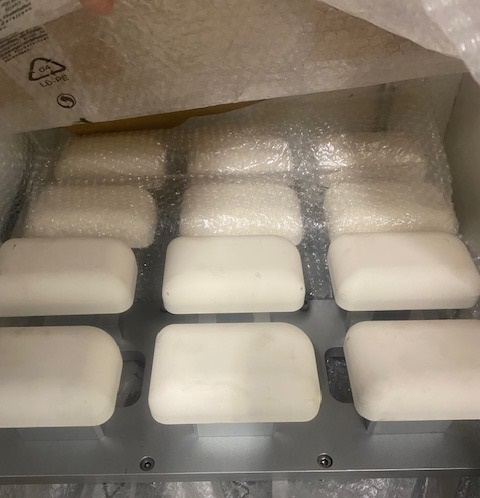

* Plug Assist for Forming

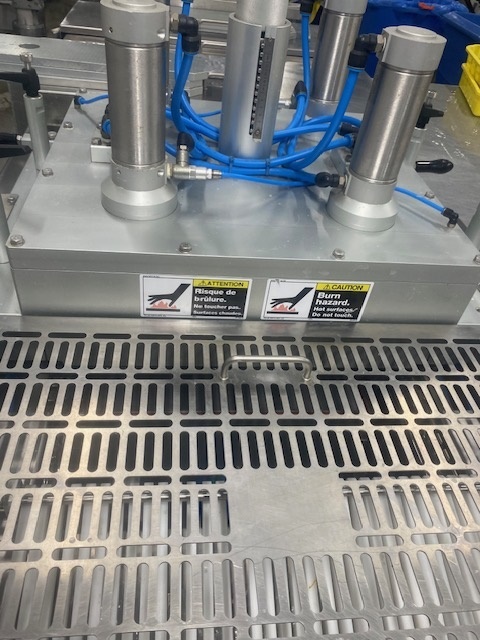

* Hinged System for top chambers forming and sealing

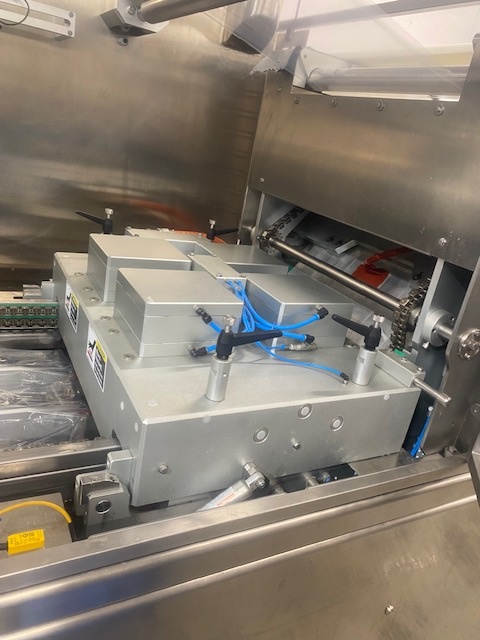

* Sealing Chamber: 480 x 500 x 120 mm
* Dome Sealing For Skin Pack
* (3:1) Angular Peeling Corner
* Gas Flush
* Motorized Top Chain
* Transversal & Longitudinal Cutting
* Up-Down Movement Rounding Punch Corners
* Double Stainless Wind Up System with Independent Motors
* Photo Eye Sensor for Printed Film
* Automatic Chain Oiling System

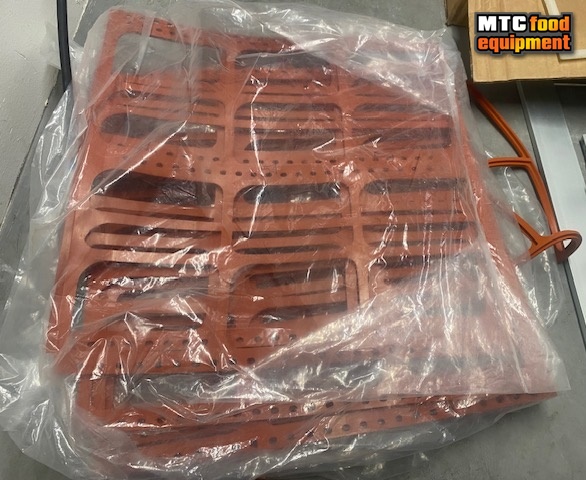

* Extra Gaskets and Some New Spare Parts
* 3:1 and 4:3 For Skin Pack
* Vacuum Pack Can Do Protrusion of 50 mm
