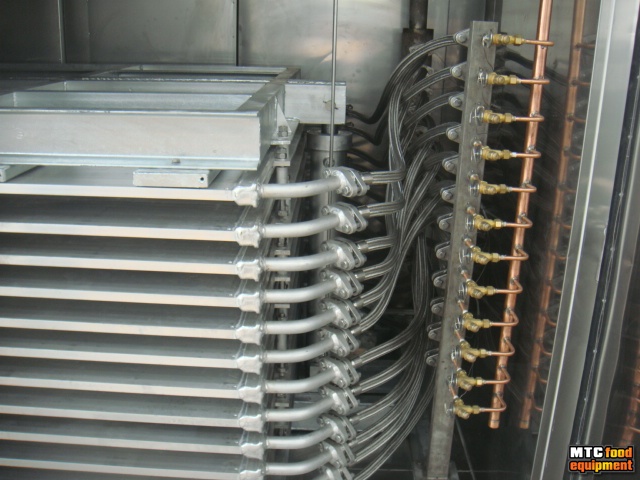

SELF CONTAINED HORIZONTAL PLATE FREEZER (10)
- Model: PFA-500
BRAND NEW
ID # 1307
* 9 Station - 10 Plates
* Doors Open In Front and Back of Enclosed Cabinet
* Insulated Cabinet - Exterior Stainless Steel
* Cabinet Dimensions: 2510 x 1785 x 2760 mm
* Plate Size: 48.82” x 49” (1240 x 1255 mm)
* Distance Between Plates: 2.17 ~ 4.33” (55 ~110 mm)
* Capacity: 1188 Lbs. Per Batch Using 16.5 Lb. Freezing Frames
* Freezing Time: 3 Hours Per Batch
* 22 KW Bitzer Compressor - Model 6GE-34Y
* 34 HP Air Cooled Condensing Unit (seperate from cabinet)
* Refrigerant: Freon R 404-A (unit ships without refrigerant)
* Refrigerant Amount Required: 60 Kgs.
* Electrical: 440-3-60 Hertz
* Freezer Weight: 3500 Kgs.
* Warranty
* Doors Open In Front and Back of Enclosed Cabinet
* Insulated Cabinet - Exterior Stainless Steel
* Cabinet Dimensions: 2510 x 1785 x 2760 mm
* Plate Size: 48.82” x 49” (1240 x 1255 mm)
* Distance Between Plates: 2.17 ~ 4.33” (55 ~110 mm)
* Capacity: 1188 Lbs. Per Batch Using 16.5 Lb. Freezing Frames
* Freezing Time: 3 Hours Per Batch
* 22 KW Bitzer Compressor - Model 6GE-34Y
* 34 HP Air Cooled Condensing Unit (seperate from cabinet)
* Refrigerant: Freon R 404-A (unit ships without refrigerant)
* Refrigerant Amount Required: 60 Kgs.
* Electrical: 440-3-60 Hertz
* Freezer Weight: 3500 Kgs.
* Warranty
